PYRO SLUG Advanced IED Disablement

Patent# 9,127,920 B2





Technical Information

  • Caliber: 27mm
  • Projectile Weight: 65 grams
  • Pyrotechnic Wt: 15 Grams
  • Length: 127mm / 5.00in
  • Diameter: 27mm / 1.055in
  • Material: Plastic


  • Soft Target IEDs
  • Suitcase, Back Packs

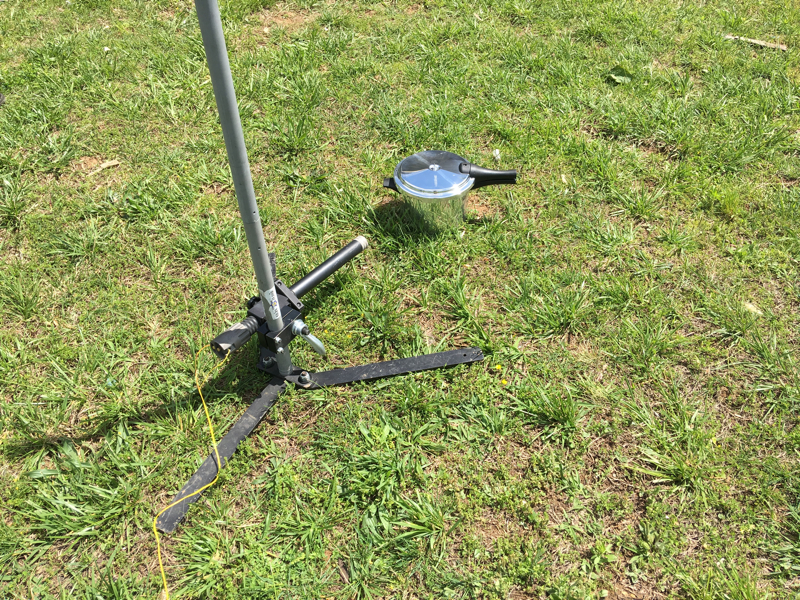

  • Pressure Cookers
  • Ammo Cans, 55 Gal Drums
  • VBIEDs – Will Opens Trunks
  • Can Fired From Robots
  • Doors Breaching up to 10meter Standoff
  • Versatile Platforms Can Be Fired from
    • Disruptor Cannons
    • Shotguns
    • Grenade Launchers
    • Remote Operation Vehicles
    • Drones / Quad Copters

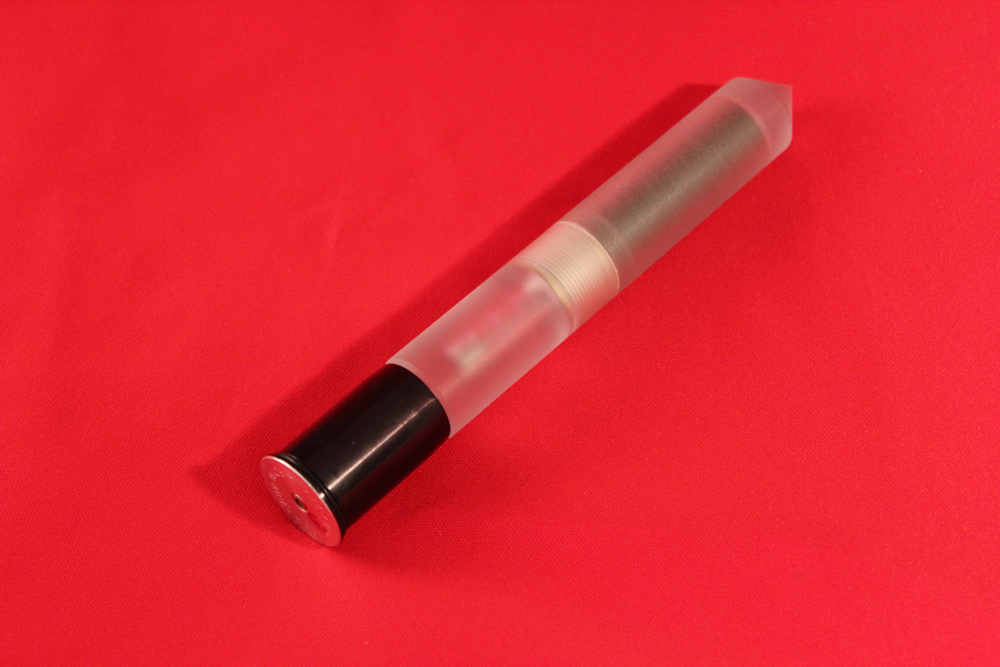

About the Projectile

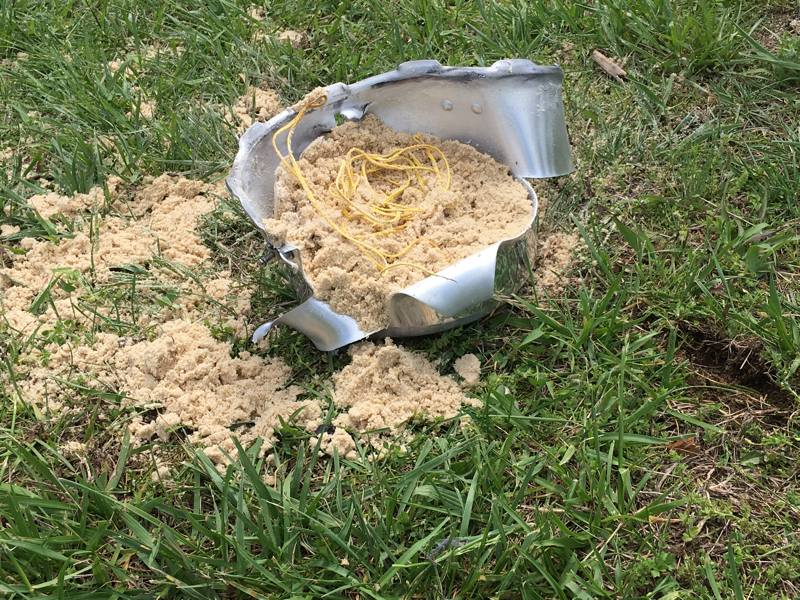

Royal Arms patented PyroSlug is a revolutionary new IED disablement technology that is far superior to all conventional means. The PyroSlug is a self-contained impact detonated over-pressure device. There is a very short delay that allows the PyroSlug to penetrate the IED before the percussion primed system initiates the patented pyrotechnic blend, which creates immense over-pressure that in turn, disrupts and dislodges all contents contained inside soft target IEDs such as Backpacks, Pressure Cookers, Suitcases, Wooden boxes, Ammo Cans, Jerry Cans, Buried IED, Raw Explosives, C-4, PETN, Semtex. Det Cord, etc… The over-pressure is created instantaneously defeating all circuits and switches, which does not allow the IED to detonate or go high order. All of the IEDs circuits, electronics, switches and explosives are ejected out of the IED container and able to be recovered in a safe manor. There is no other technology like this, the PyroSlug will be the first and only shot you need to completely disable the toughest of IEDs that conventional methods (WaterShot) is not able to do reliably.


Call to Schedule a Demonstration
